EDA

Exploratory/Explanatory Data Analysis

Agenda

• Tools: Quarto and Positron
• Exploratory Data Analysis
• Explanatory Data Analysis

Quarto

Quarto

Quarto is an open-source scientific publishing system that you can run at the command line.

1. Source document is .qmd and output document can be a pdf, a webpage, slides, a dashboard, etc.

2. The source document can hold text, images, videos, and code.

3. Rendering the source document runs all the code and puts the data products into the output document.

   $ quarto render mydoc.qmd

4. Microsoft Word + Microsoft Excel + a lot more.

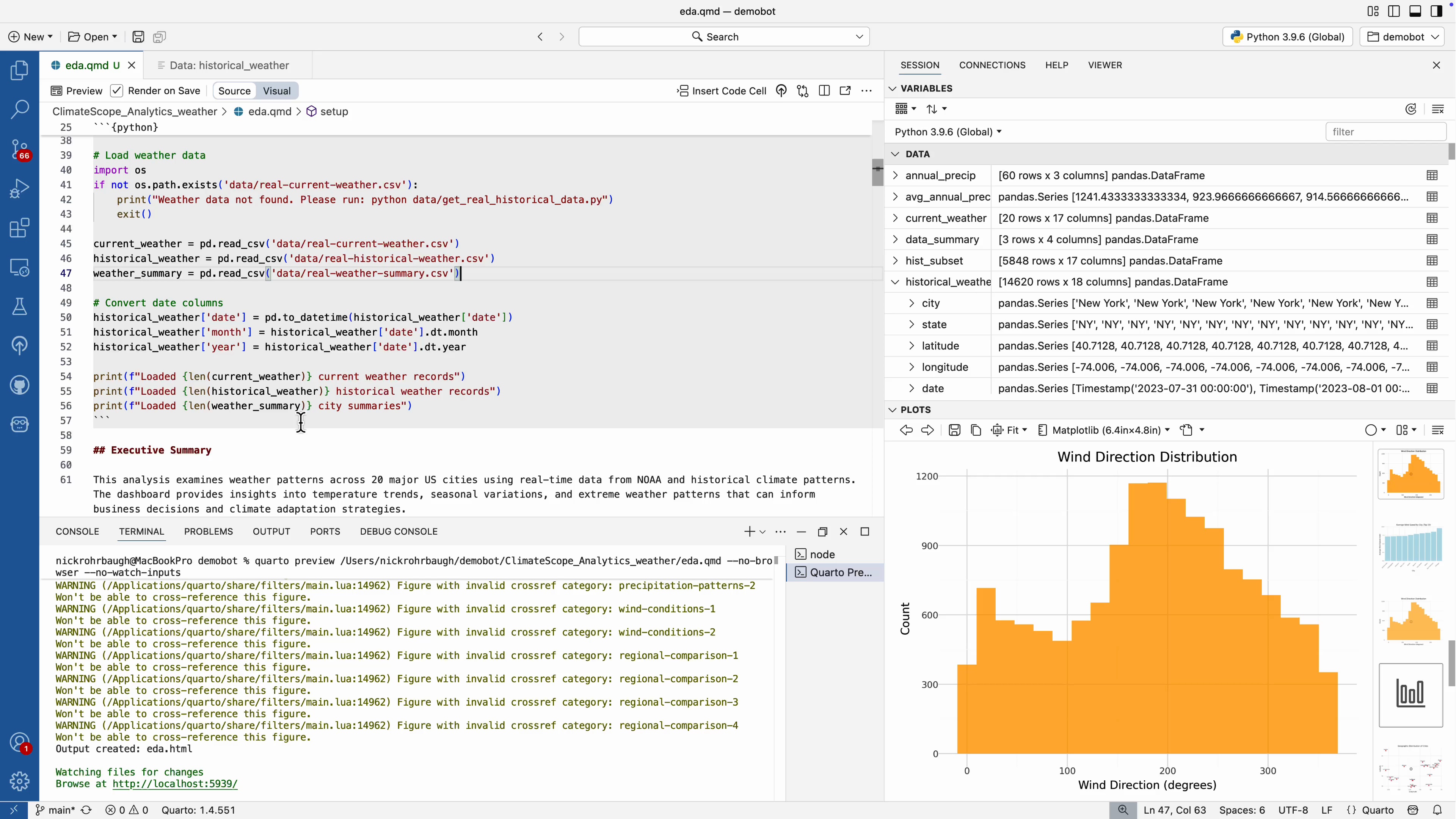

Positron

Positron

Positron is an Integrated Development Environment (IDE) that makes it easy to pull together many different tools to do Data Science.

1. Shell, R, Editor, Viewer, git, and Quarto all in one place
2. Successor to RStudio
3. R, Python, and Julia are equal citizens

On board draw the 4 panels and label them to get them used to what they’ll see in the video.

Questions:

1. Sketch the data frame that was used to create this plot.
2. Describe the aesthetic mappings and geometry used.
3. What is effective about this plot? How could it be improved?

Write these on the board.

02:30

Exploratory Data Analysis

(miniconda3) (base) andrewbray@MacBookPro fall-2025-private % cd 16-eda/data
(miniconda3) (base) andrewbray@MacBookPro data % ls
ev-registrations.csv    ev-xlsx.png
(miniconda3) (base) andrewbray@MacBookPro data % cat ev-registrations.csv
State,Count
Alabama,"13,047"
Alaska,"2,697"
Arizona,"89,798"
Arkansas,"7,108"
California,"1,256,646"
Colorado,"90,083"
Connecticut,"31,557"
Delaware,"8,435"
District of Columbia,"8,066"
Florida,"254,878"
Georgia,"92,368"
Hawaii,"25,565"
Idaho,"8,501"
Illinois,"99,573"
Indiana,"26,101"
Iowa,"9,031"
Kansas,"11,271"
Kentucky,"11,617"
Louisiana,"8,150"
Maine,"7,377"
Maryland,"72,139"
Massachusetts,"73,768"
Michigan,"50,284"
Minnesota,"37,050"
Mississippi,"3,590"
Missouri,"26,861"
Montana,"4,608"
Nebraska,"6,920"
Nevada,"47,361"
New Hampshire,"9,861"
New Jersey,"134,753"
New Mexico,"10,276"
New York,"131,250"
North Carolina,"70,164"
North Dakota,959
Ohio,"50,393"
Oklahoma,"22,843"
Oregon,"64,361"
Pennsylvania,"70,154"
Rhode Island,"6,396"
South Carolina,"20,873"
South Dakota,"1,675"
Tennessee,"33,221"
Texas,"230,125"
Utah,"39,998"
Vermont,"7,816"
Virginia,"84,936"
Washington,"152,101"
West Virginia,"2,758"
Wisconsin,"24,943"
Wyoming,"1,139"

CSVs

A comma separate value (CSV) file stores tabular data with each row on a new line and each column delimited by a comma. Good for storing R data frames in a linga-franca in your file system.

Reading into R (base R)

ev <- read.csv("data/ev-registrations.csv")
ev

                  State     Count
1               Alabama    13,047
2                Alaska     2,697
3               Arizona    89,798
4              Arkansas     7,108
5            California 1,256,646
6              Colorado    90,083
7           Connecticut    31,557
8              Delaware     8,435
9  District of Columbia     8,066
10              Florida   254,878
11              Georgia    92,368
12               Hawaii    25,565
13                Idaho     8,501
14             Illinois    99,573
15              Indiana    26,101
16                 Iowa     9,031
17               Kansas    11,271
18             Kentucky    11,617
19            Louisiana     8,150
20                Maine     7,377
21             Maryland    72,139
22        Massachusetts    73,768
23             Michigan    50,284
24            Minnesota    37,050
25          Mississippi     3,590
26             Missouri    26,861
27              Montana     4,608
28             Nebraska     6,920
29               Nevada    47,361
30        New Hampshire     9,861
31           New Jersey   134,753
32           New Mexico    10,276
33             New York   131,250
34       North Carolina    70,164
35         North Dakota       959
36                 Ohio    50,393
37             Oklahoma    22,843
38               Oregon    64,361
39         Pennsylvania    70,154
40         Rhode Island     6,396
41       South Carolina    20,873
42         South Dakota     1,675
43            Tennessee    33,221
44                Texas   230,125
45                 Utah    39,998
46              Vermont     7,816
47             Virginia    84,936
48           Washington   152,101
49        West Virginia     2,758
50            Wisconsin    24,943
51              Wyoming     1,139

CSVs

A comma separate value (CSV) file stores tabular data with each row on a new line and each column delimited by a comma. Good for storing R data frames in a linga-franca in your file system.

Reading into R (readr)

library(readr)
# library(tidyverse) # easy alternative
ev <- read_csv("data/ev-registrations.csv")
ev

# A tibble: 51 × 2
   State                  Count
   <chr>                  <dbl>
 1 Alabama                13047
 2 Alaska                  2697
 3 Arizona                89798
 4 Arkansas                7108
 5 California           1256646
 6 Colorado               90083
 7 Connecticut            31557
 8 Delaware                8435
 9 District of Columbia    8066
10 Florida               254878
# ℹ 41 more rows

Q1: What are the cols and rows?

dim(ev)

[1] 51  2

sapply(ev, class)

      State       Count
"character"   "numeric"

Q1: What are the cols and rows?

ev

# A tibble: 51 × 2
   State                  Count
   <chr>                  <dbl>
 1 Alabama                13047
 2 Alaska                  2697
 3 Arizona                89798
 4 Arkansas                7108
 5 California           1256646
 6 Colorado               90083
 7 Connecticut            31557
 8 Delaware                8435
 9 District of Columbia    8066
10 Florida               254878
# ℹ 41 more rows

• Unit of observation: a state (or DC)
• Variables: name (character) and registration count (double)

A description of the variables is often stored in a separate file called a data dictionary.

Q2: Is there any missing data?

Option 1: Total missing counts

library(dplyr)
ev |>
  summarize(n_missing = sum(is.na(Count)))

# A tibble: 1 × 1
  n_missing
      <int>
1         0

Option 2: Proportion missing counts

ev |>
  summarize(p_missing = mean(is.na(Count)))

# A tibble: 1 × 1
  p_missing
      <dbl>
1         0

Q3: What is the distribution of count?

library(ggplot2)
ev |>
  ggplot(aes(x = Count)) +
  geom_bar()

Q3: What is the distribution of count?

ev |>
  ggplot(aes(x = State)) +
  geom_bar()

Q3: What is the distribution of count?

ev |>
  ggplot(aes(y = State)) +
  geom_bar()

geom_bar()

geom_bar() counts up the number of observations in each level of a single variable, then draws bars up to that height.

library(palmerpenguins)
penguins

# A tibble: 344 × 8
   species island    bill_length_mm bill_depth_mm flipper_length_mm body_mass_g
   <fct>   <fct>              <dbl>         <dbl>             <int>       <int>
 1 Adelie  Torgersen           39.1          18.7               181        3750
 2 Adelie  Torgersen           39.5          17.4               186        3800
 3 Adelie  Torgersen           40.3          18                 195        3250
 4 Adelie  Torgersen           NA            NA                  NA          NA
 5 Adelie  Torgersen           36.7          19.3               193        3450
 6 Adelie  Torgersen           39.3          20.6               190        3650
 7 Adelie  Torgersen           38.9          17.8               181        3625
 8 Adelie  Torgersen           39.2          19.6               195        4675
 9 Adelie  Torgersen           34.1          18.1               193        3475
10 Adelie  Torgersen           42            20.2               190        4250
# ℹ 334 more rows
# ℹ 2 more variables: sex <fct>, year <int>

geom_bar()

geom_bar() counts up the number of observations in each level of a single variable, then draws bars up to that height.

library(palmerpenguins)
penguins |>
  ggplot(aes(y = island)) +
  geom_bar()

Summarizing with counts

penguins |>
  group_by(island) |>
  summarize(count = n())

# A tibble: 3 × 2
  island    count
  <fct>     <int>
1 Biscoe      168
2 Dream       124
3 Torgersen    52

Summarizing with counts

penguins |>
  count(island)

# A tibble: 3 × 2
  island        n
  <fct>     <int>
1 Biscoe      168
2 Dream       124
3 Torgersen    52

geom_col()

geom_col() takes one column of categories and draws a bar for each up to the height of a second column of counts.

penguins |>
  count(island) |>
  ggplot(aes(y = island, x = n)) +
  geom_col()

Q3: What is the distribution of count?

ev |>
  ggplot(aes(x = State, y = Count)) +
  geom_col()

Q3: What is the distribution of count?

ev |>
  ggplot(aes(x = State, y = Count)) +
  geom_col() +
  theme(axis.text.x = element_text(angle = 270,
                                   hjust = 0,
                                   vjust = 0.5))

Two types of Viz

Exploratory Data Analysis (EDA)

Explanatory Data Analysis

Add notes to each:

Exploratory: - consumer: the analyst - goal: uncover structure for further analysis - follow templates - prioritize quick and accurate interpretation

Explanatory: - consumer: stakeholder - goal: tell a specific story - customized - polished aesthetic

Explanatory Data Analysis

Goal #1

• Display the registration counts in a manner that makes it easy to see the counts of each individual state equally well.

ev |>
  ggplot(aes(x = State, y = Count)) +
  geom_col() +
  theme(axis.text.x = element_text(angle = 270,
                                   hjust = 0,
                                   vjust = 0.5))

Labels

The labels on the plot can refer to many different places where text is added to describe what is plotted.

• title
• subtitle
• x-axis
• y-axis
• legends

In ggplot2, these are arguments to a labs() layer.

• title
• subtitle
• color
• fill
• size
• shape

Labels

ev |>
  ggplot(aes(x = State, y = Count)) +
  geom_col() +
  theme(axis.text.x = element_text(angle = 270,
                                   hjust = 0,
                                   vjust = 0.5)) +
  labs(title = "Electric Vehicle Registrations by State",
       x = "",
       y = "Registration Count")

Themes

Themes describe a set of visual design choices made for the plot on things like the background, the gridlines, the axes, the tick marks, and the fonts.

Some ggplot2 themes (each one can be added as layer)

• theme_gray(): the default
• theme_bw()
• theme_minimal()

Themes

ev |>
  ggplot(aes(x = State, y = Count)) +
  geom_col() +
  theme(axis.text.x = element_text(angle = 270,
                                   hjust = 0,
                                   vjust = 0.5)) +
  labs(title = "Electric Vehicle Registrations by State",
       x = "",
       y = "Registration Count") +
  theme_minimal()

Themes

Themes

ev |>
  ggplot(aes(x = State, y = Count)) +
  geom_col() +
  theme_minimal(axis.text.x = element_text(angle = 270,
                                   hjust = 0,
                                   vjust = 0.5)) +
  labs(title = "Electric Vehicle Registrations by State",
       x = "",
       y = "Registration Count")

Themes

Error in theme_minimal(axis.text.x = element_text(angle = 270, hjust = 0, : unused argument (axis.text.x = element_text(angle = 270, hjust = 0, vjust = 0.5))

Themes

ev |>
  ggplot(aes(x = State, y = Count)) +
  geom_col() +
  theme_minimal() +
  theme(axis.text.x = element_text(angle = 270,
                                   hjust = 0,
                                   vjust = 0.5)) +
  labs(title = "Electric Vehicle Registrations by State",
       x = "",
       y = "Registration Count")

Themes

Themes

Themes describe a set of visual design choices made for the plot on things like the background, the gridlines, the axes, the tick marks, and the fonts.

Some ggplot2 themes (each one can be added as layer)

• theme_gray(): the default
• theme_bw()
• theme_minimal()

theme() will change defaults of the exiting theme, so add it last.

Setting Aesthetics

ev |>
  ggplot(aes(x = State, y = Count)) +
  geom_col(color = "blue") +
  theme_minimal() +
  theme(axis.text.x = element_text(angle = 270,
                                   hjust = 0,
                                   vjust = 0.5)) +
  labs(title = "Electric Vehicle Registrations by State",
       x = "",
       y = "Registration Count")

Setting Aesthetics

Setting Aesthetics

ev |>
  ggplot(aes(x = State, y = Count)) +
  geom_col(fill = "steelblue") +
  theme_minimal() +
  theme(axis.text.x = element_text(angle = 270,
                                   hjust = 0,
                                   vjust = 0.5)) +
  labs(title = "Electric Vehicle Registrations by State",
       x = "",
       y = "Registration Count")

Setting Aesthetics
